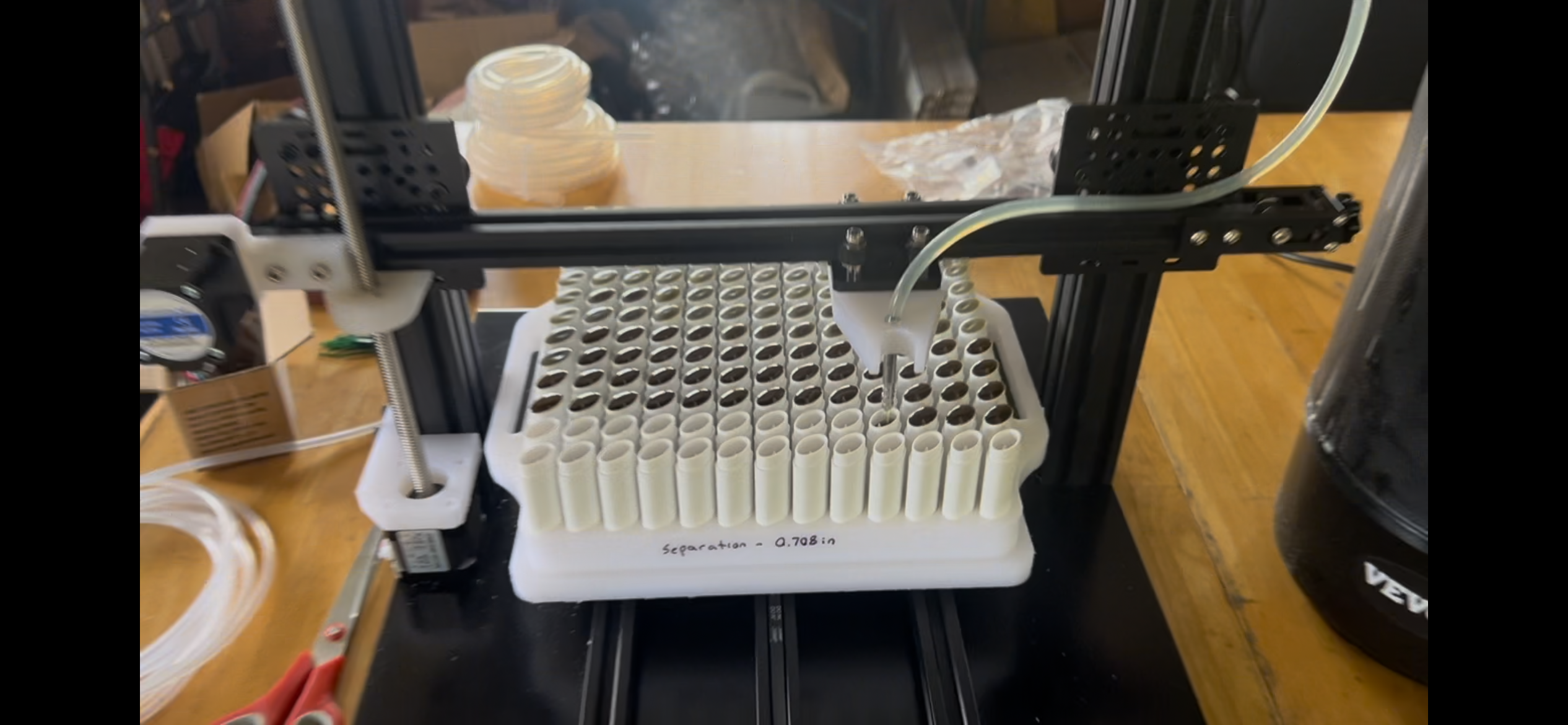

Bottles free-flowing liquids automatically and hands-free with precision of up to ±1/3ml.
Uses custom 9.5in x 9.5in trays designed for each product container.
Fills hundreds to over a thousand containers per hour.
Compatible with small or large volumes, from 5ml to 150ml+.
Fills high-temperature liquids, including hot waxes up to 212°F.
Liquids only ever touch silicone tubing and stainless steel.
Fill volume can be adjusted in 0.01ml increments.
Controlled wirelessly over WiFi using a dedicated Android tablet.
Compact, desktop-sized system requiring less than 2ft x 2ft of space.
Additional Features
Emergency Stop: A built-in button halts operation immediately and resets the machine to its starting position.
Quick Tubing Changes: Designed for fast product changeovers. The pump face can be removed by loosening two wing nuts, allowing the tubing to be swapped and reinstalled within minutes.
Flexible Tubing Options:
Smaller tubing provides lower volume output with greater precision.
Larger tubing delivers higher volume output but with less precision.
The pump is compatible with any silicone tubing under 0.5 inches in diameter and with a 1/16-inch wall size (outside diameter minus inside diameter = 1/8 inch).
